NC-002
AUTO
NOZZLE
CHANGER
Nozzles can
be replaced
any time
Do you have a busy production schedule?
The Auto Nozzle Changer allows for more efficient and flexible production schedules.
Nozzles can be replaced any time without needing to stop production lines.
NC-002
Auto Nozzle Changer
  Outline
The Auto Nozzle Changer allows you to stop worrying about production down time ruining your production schedule by automating nozzle replacement.

– Supports nozzle diameters up to 32mm
– Nozzle replacement takes about 30 seconds
– Up to 10 nozzles can be replaced at a time
  Specification
Model NC-002
Power 24VDC 3A
Air pressure 4kgf/cm²
Weight 8.5kg
01

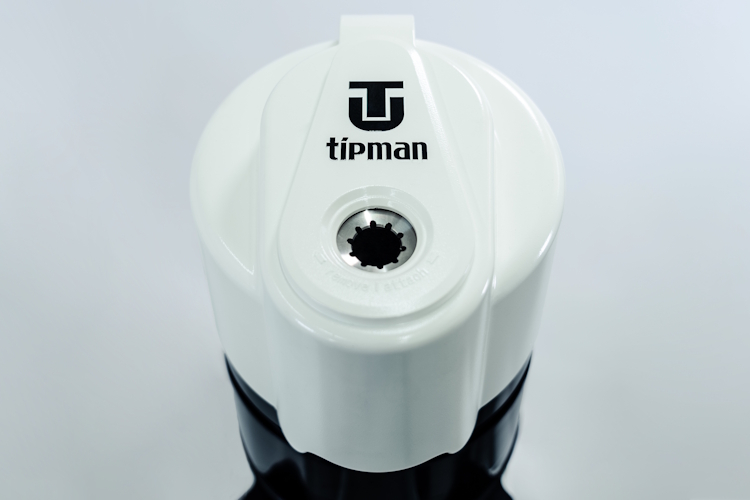

Loading nozzles into the Auto Nozzle Changer’s magazine.
Up to 10 nozzles can be loaded at a time.
02
Removing the old nozzle.
03

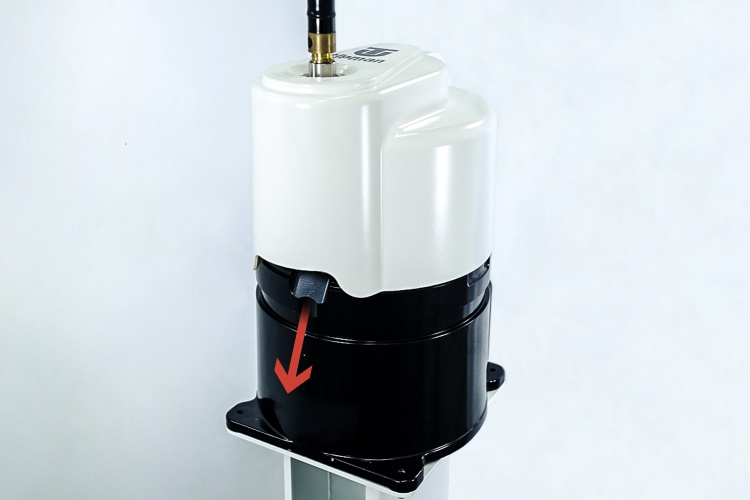

Removed nozzles eject automatically from the Auto Nozzle Changer.
OPTIONAL
STAND
A stand designed specifically for the Auto Nozzle Changer.
Ejected nozzles are stored within the stand.
Once the replacement has been confirmed, the robot returns to the production line.
