TS-01
TORCH
STATION
STATION
Achieves
stable
nozzle cleaning
stable
nozzle cleaning
Firmly secures nozzles with an originally-developed clamp system.
Achieves stable nozzle cleaning despite its powerful motor.
Achieves stable nozzle cleaning despite its powerful motor.
TS-01
Torch Station
Outline
The torch-cleaning function for MIG/MAG welders has been combined with a torch holder.
Through the use of an originally-developed clamp roller system, vibrations are kept to a minimum even at high reamer RPMs.
It helps to ensure highly efficient production by shortening cleaning time.
Through the use of an originally-developed clamp roller system, vibrations are kept to a minimum even at high reamer RPMs.
It helps to ensure highly efficient production by shortening cleaning time.
Specification
| Model | TS-01 |
|---|---|
| Air pressure | 5kgf/cm² |
| Air hose diameter | Inside diameter of φ6 mm or more |
| Air hose | for sputter |
| Weight | 3.2Kg |
01

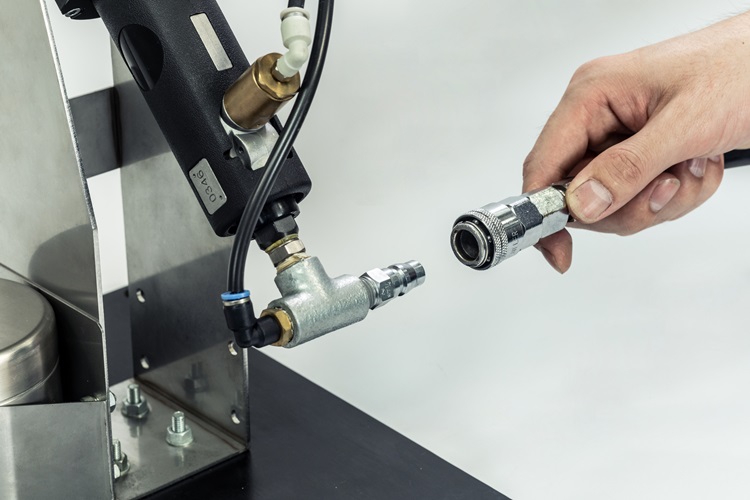

During installation, the only input required is a pneumatic hose.
02
Push the switch down to make the reamer begin rotating at high speed.
03
With the switch held down, insert the torch into the slot to clean it.
04
The torch does not vibrate or move while it is being cleaned, as it is held securely in place with an originally-developed clamp system.
05
The scraped off spatter will be collected without scattering.
06
Release the switch, and cleaning is complete.
07
When the device is not being used for cleaning, insert the torch into the slot and use it to store the torch.
OPTIONAL
STAND
BRACKET

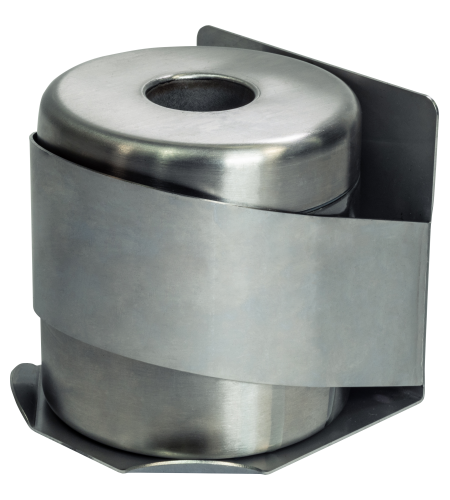

Bracket for holding anti-spatter liquid
